No dishwasher high loop drain line

No dishwasher high loop drain line

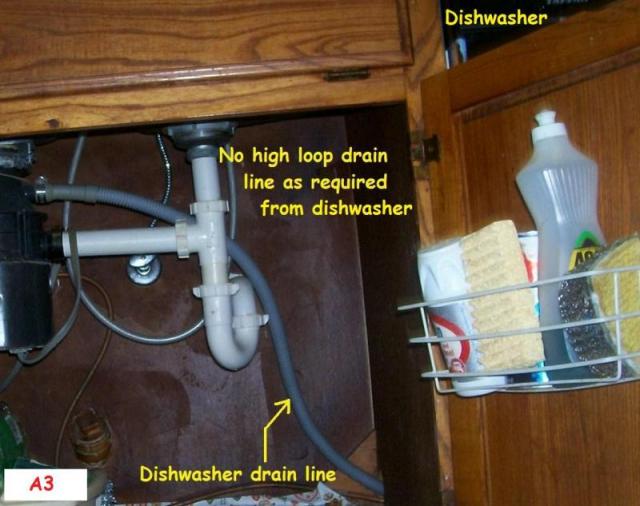

At this San Antonio area Home Inspection the photo shows there is no high loop drain line as needed. A high loop should always be installed with the dishwasher drain line to prevent backflow of waste water to the dishwasher. The high loop should be fastened to the bottom of the countertops. For more info visit our blog on dishwasher high loop drain lines.

   Dishwasher High Loop Drain Line
          High Loop Drain Line

high loop air gap  An air gap up thru the countertop is optional, but not needed with a properly installed high loop drain line.

 Photo by JWK Inspections, Joe Keresztury San Antonio Home Inspector                         Images  by Internachi
