Drainage Slope away from Foundation needed

Proper Drainage Slope Is Needed Away From

Your San Antonio Area Foundation

Foundation Drainage Requirements JWK Inspections San Antonio

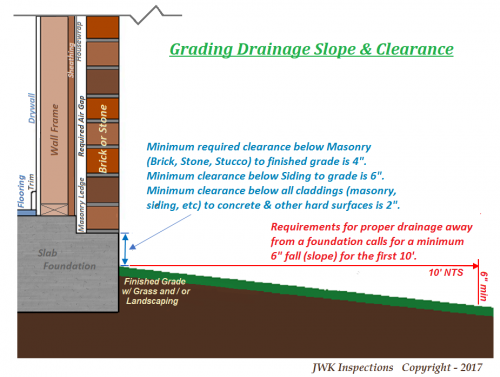

The illustration above shows proper drainage slope and clearances around the foundation that is needed as per modern standards and minimal IRC requirements. Proper drainage slope based on the International Residential Code is a minimum fall (slope) of 6" away from the foundation for the 1st 10'. Proper clearance above grade to the top of foundation / bottom of exterior cladding is a minimum 4" for masonry areas with a minimum 6" clearance above grade at siding areas.
Proper drainage slope away from a foundation is not just required but needed to help prevent unneeded settling issues to the foundation of a building that can affect the entire structure over time.

The International Residentional Code (IRC) & San Antonio City Code requirements call for proper drainage away from your foundation. Whether the construction is in a cities jurisdiction or not the IRC dictates building codes. City codes whether it's for San Antonio, Boerne, Fair Oaks, Garden Ridge, Schertz, etc are based on the International Residential Code (IRC). But if your not in one of those type AHJ (Authority Having Jurisdiction) areas but out in the county without city (AHJ) review of construction, your builder still has to go by the International Residential Code (the governing body for construction) and also the requirements of the engineers that design the foundation for a new home or any other type building. Engineers will at least require the IRC's minimum but some engineers I've seen even require twice the minimum code based on the IRC. Proper drainage slope is always a requirement for certification of the foundation that the original engineer for the structures foundation had designed on a new home or commercial property construction. Engineers will design a foundation, inspect it before concrete pour & provide certification after approval based on their design & requirements of the foundation.

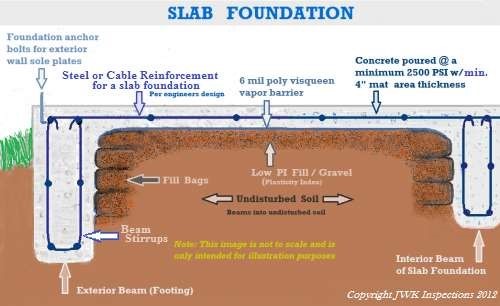

Slab Foundation design JWK Inspections San Antonio

.

Images below are from actual engineered foundation plans for builders shown from construction phase- Foundation (pre pour) inspections performed by JWK Inspections that show that the foundation design by those engineers at a minimum require the IRC's (International Residential Code) requirement for proper drainage but also that some engineers require twice as much of the minimum IRC requirements for the proper drainage away from the foundation and the clearance of foundation above grade.
Please excuse the quality of some of the images shown below- some of them were photos taken of the engineers requirements on their foundation plans for the builder at the time of an inspection.
One builders Superintendent (Construction Manager) actually pevented me (Joe Keresztury)
from taking photos of the engineers foundation plan. Another Builder at a New Home Pre Move In Inspection refused to let us (JWK Inspections) and the client to see the engineers foundation plans   after we called out how inadequate the drainage slope around the foundation was.

Foundation Grading Drainage Requirements San Antonio JWK InspectionsEngineers Foundation Draiange Requirements San Antonio JWK Inspections
          San Antonio Foundation Engineer Drainage RequirementsJWK Inspections Drainage grading slope requirements commercial engineer
             Sample Engineers Drainag Slope Requirrement away from foundation JWK InspectionsDrainage slope at foundation requirements by Enginers San Antonio JWK Inspections

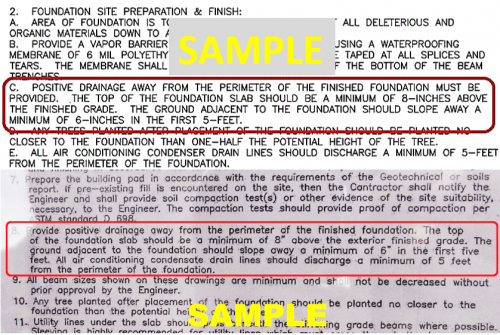

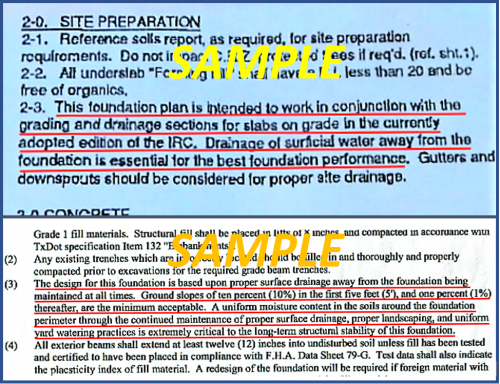

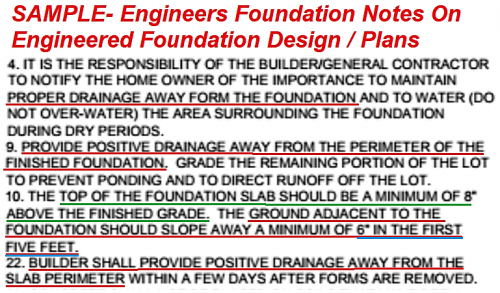

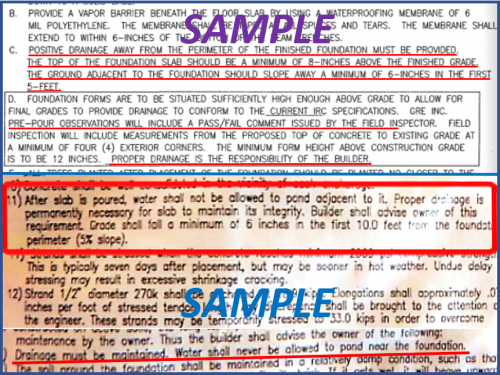

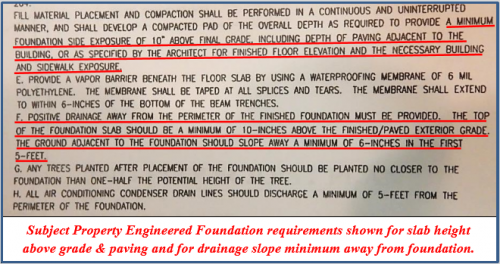

     The 9 illustrations above are all from engineered foundation design notes on the plans by different engineers
from our foundation pre-pour construction phase inspections in the San Antonio or surrounding areas. 5 of the
engineers are calling for more drainage slope then the minimum called for by the IRC. The IRC calls for a
    minimum 6" fall for the first 10' (5% slope) away from the foundation. 5 of these engineers above are
calling for a minimum 6" fall in the first 5', which is 10% slope. Also, 5 of the engineers also call for more
than the minimum IRC requiremnt for foundation clearnce above finished grade. The IRC requires a minimum
4" clearance above grade at masonry areas and 6" clearance above grade at siding areas. Some of the engineers
call for a minimum 8" clearnce above grade to top of foundation (bottom of cladding) and one engineer shows
a minimum 10" clearance above grade areas. The bottom left illustration above shows that engineer calling out &
emphasing no less than 2 times the requirement for proper drainage slope away from the foundation and that it
also needs to be established right away, within days after the concrete is poured and forms are removed.

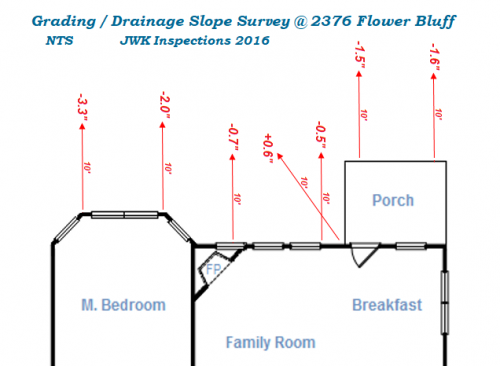

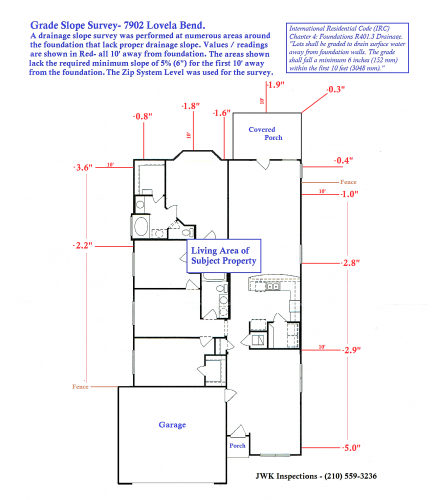

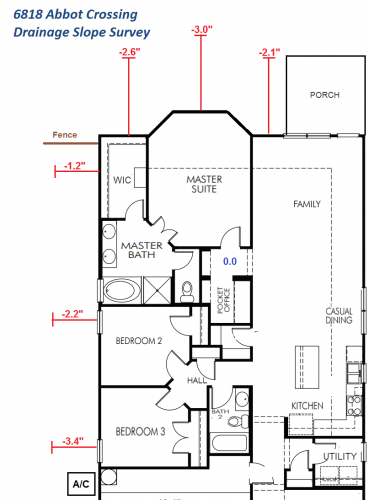

The illustration below shows a Drainage / Grade Level Survey performed by JWK Inspections at a San Antonio area home inspection with the Zip Level System. All the readings were taken at 10' away from the foundation. Requirements call for a minimum 6" fall, slope for that 1st 10' away from the foundation. As seen in the illustration none of the areas met minimum requirements as shown with the documented readings. The red numbers show the inadequate slope in decimal inches. For instance the back left corner has less than an inch slope (fall) with only a 0.8" reading.
Grading Drainage slope at foundation
The Drainage Level Survey example below shows the Illustration (left) from the inspection of a home in the San Antonio area & for this article we also show the Process of doing the Drainage Survey Part of the Inspection with the Zip Level System. Drainage Slope Level Surveys can be done for a property whether it is in conjunction with an inspection for the entire property (as with this property) or just to evealuate the drainage around any type foundation.
Drainage slope survey JWK Inspections San Antonio Drainage slope survey zip level JWK Inspections Drainage slope foundation JWK Inspections San Antonio
Draiange slope survey San Antonio

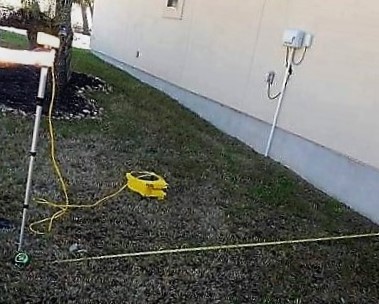

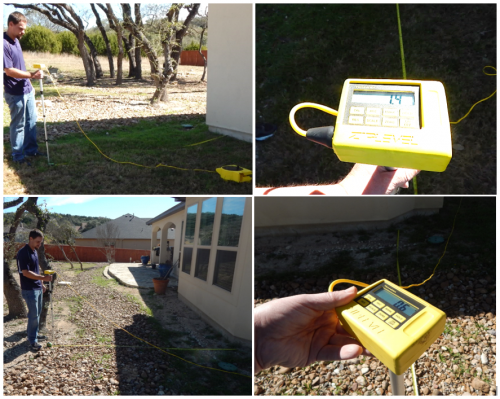

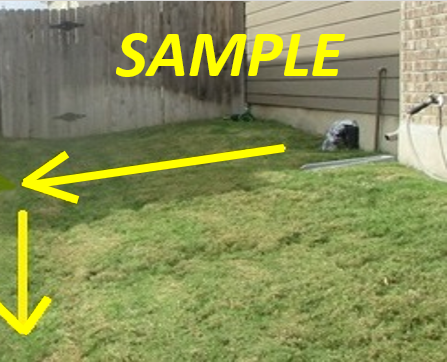

Above left- A drainage slope survey showing inadequate drainage slope away from the foundation in areas shown. Center- The Zip Level Equipment shown at that San Antonio Home Inspection that included the Grading / Drainage Level Survey by JWK Inspections (shown at left). Readings were taken at 10' away from the foundation to evaluate needed drainage slope as  as per requirements. The natural grade as seen at above center slopes from front to back. Even though it has that slope, it should first slope away from the foundation (which it doesn't) than drain down the natural slope See sample above right, of  the grading  slope first falling away from foundation than draining down the natural slope. Otherwise drainage runs down along the edge of the foundation and softens the soil and / or washes it away, which can lead to settling issues of the foundation & entire structure.



Drainage Grade slope survey foundation JWK Inspections

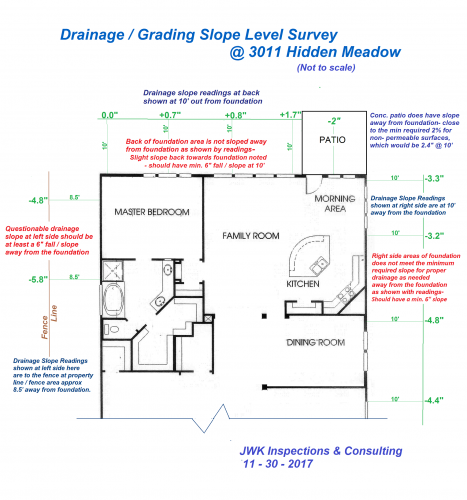

Above- This San Antonio area home had settling issues which most likely were contributed to by inadequate drainage
away from the foundation in numerous areas as shown in this illlustration of a Drainage Level Survey.

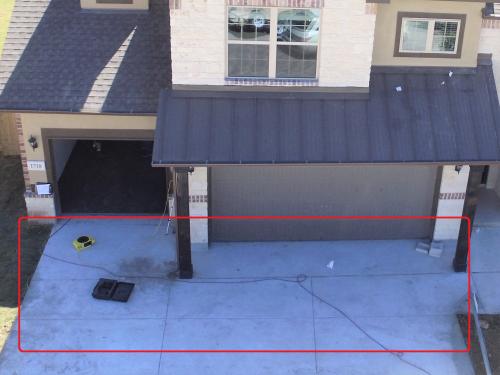

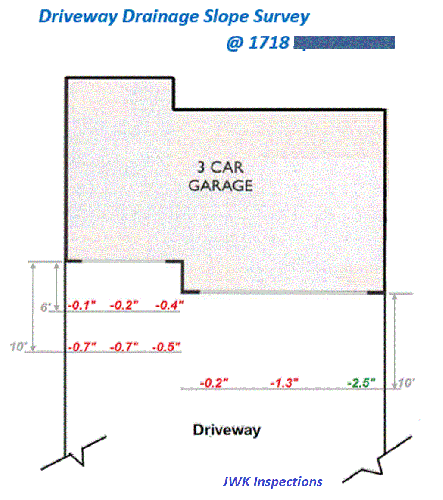

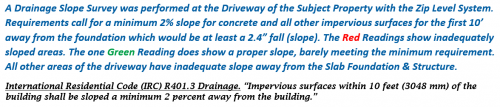

Below- A Drainage Slope Survey was performed at the driveway of that inspection. Zip Level Elevation readings showed inadequate draiange slope away from the foundation. At right below, our drone view photo shows the area of the readings shown in the layout illustration at the left.
 Driveway Drainage slope survey JWK InspectionsDrone Driveway JWK Inspections  JWK Inspections Drainage slope requirements at foundation

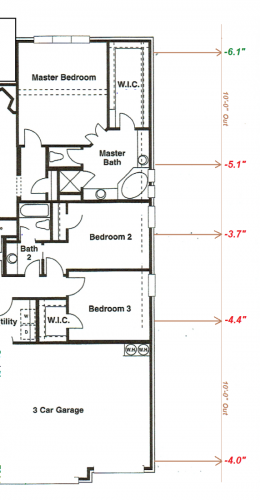

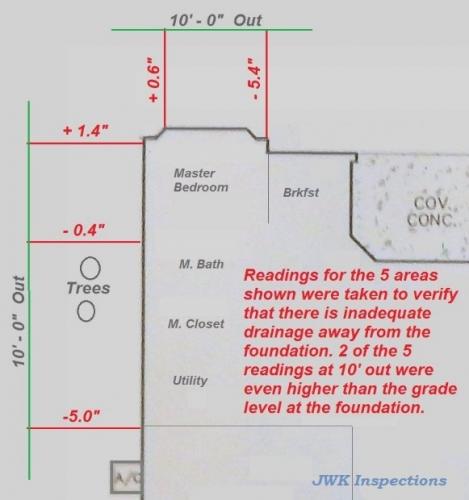

Below- Shown are more Grading / Drainage Slope Surveys at San Antonio area homes
that did not have adequate drainage slope as needed away from the foundation.

         JWK Inspections Zip Level Drainage slope survey San Antonio TX
  Zip Level Draiange Survey Grading Foundation     Proper Drainage slope needed at foundation grading survey zip level

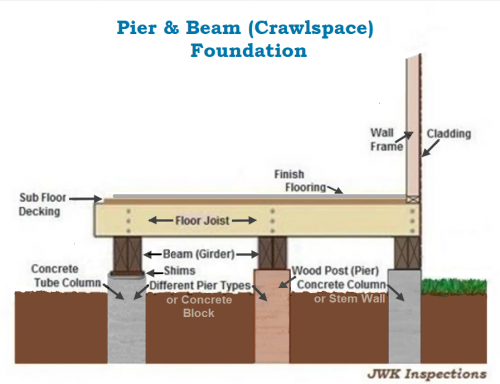

Proper Drainage Slope is needed around a foundation whether it is a slab type
foundation or other type foundation including pier & beam types (below). Pier & Beam
foundations are common on homes in older neighborhoods around the San Antonio areas.

Pier and Beam Foundation Crawlspace JWK Inspections San Antonio9

.

By Joseph W. Keresztury, JWK Inspections.
Home Inspector, Consultant & New Home Construction Specialist
Illustrations & photos by JWK Inspections,  Grading / Drainage Slope Surveys by JWK Inspections
Engineers requirement images were from construction phase inspections (foundation pre pour) performed  by JWK Inspections, including by GE Reaves, Galbraeth, Law, Westbrook Engineering & others in the San Antonio and South Texas areas.
